1-hydroxy ethylidene-1,1-diphosphonic acid
NANJING FINECHEM HOLDING CO., LTD
Specifications
Item Index
Appearance White crystal powder
Active content (HEDP)% 90.0 min
Active content (HEDP·H2O)% 98.0 min
Phosphorous acid (as PO33-)% 0.8 max
Phosphoric acid  (as PO43- )% 0.5 max
Chloride (as Cl-)% 0.5 max
pH (1% water solution)  2.0 max
Density  (20℃)g/cm3 -
Fe, mg/L 10.0 max
Ca sequestration (mg CaCO3/g) -
Packing & Storage
Packing 25kg/bag,customers’ requirement
Storage 20℃, 2 years.
Shipping Room temperature in China; may vary elsewhere
Free Quote
For samples, pricing, or more information, please call us at 0086 25 52397805 or mail to info@nj-finechem.com or fill out the following form.
We will respond to you as soon as possible.

Tel: 0086 25 52397805

Email: info@nj-finechem.com

General Information
Chemical & Physical Properties
Safety Information

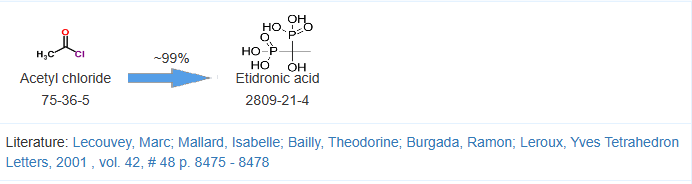

Synthetic Route
Common Names HEDP| Hydroxyethylidene diphosphonic acid| Ethane-1-hydroxy-1,1-diphosphonic acid
Structure
CAS No. 2809-21-4 Boiling Point (℃) 578.8±60.0 °C at 760 mmHg
Molecular Weight 206.028 Melting Point (℃) 198~199℃
Appearance White crystal powder Vapor Specific Gravity NONE
HS Code 2931900090 Flash Point (℃) 303.8±32.9 °C
Solubility Soluble in water, methanol and ethanol Autoignition Temperature (℃) NONE
Safety Phrases S26-S39
RIDADR UN 3265
WGK Germany 2
Packaging Group II
Hazard Class 8
SYMPTOMS PREVENTION FIRST AID
Inhalation Cough. Sore throat. Use local exhaust or breathing protection. Fresh air, rest.
Skin Redness. Burning sensation. Itching. Protective gloves. Remove contaminated clothes. Rinse and then wash skin with water and soap.
Eyes Redness. Pain. Wear safety goggles. First rinse with plenty of water for several minutes (remove contact lenses if easily possible), then refer for medical attention.
Ingestion Abdominal pain. Nausea. Vomiting. Do not eat, drink, or smoke during work. Wash hands before eating. Rinse mouth. Induce vomiting (ONLY IN CONSCIOUS PERSONS!). Refer for medical attention.
Frequently Asked Questions
What is 1-hydroxy ethylidene-1,1-diphosphonic acid(HEDP)?
HEDP is an organic phosphoric acid scale and corrosion inhibitor, which can form stable complexes with iron, copper, zinc and other metal ions, and can dissolve oxides on the metal surface. HEDP can still play a good role in corrosion and scale inhibition at 250°C, and it is still very stable at high pH value, not easy to be hydrolyzed, and not easy to decompose under general light and heat conditions. Acid and alkali resistance and chlorine oxidation resistance are better than other organic phosphates (salts). HEDP can form six-ring chelates with metal ions in water, especially calcium ions, so HEDP has good scale inhibition effect and obvious solubility limit effect. When used in combination with other water treatment agents, it shows ideal synergy.
HEDP solid is a high-purity product, suitable for severe winter regions, especially for cleaning agents and daily chemical additives in the electronics industry.

The packaging and storage of 1-hydroxy ethylidene-1,1-diphosphonic acid(HEDP)?
HEDP liquid is packed in plastic barrels, 30Kg or 250Kg per barrel, and HEDP solids are packed in plastic woven bags lined with polyethylene bags, with a net weight of 25kg per bag, which can also be determined according to customers’ needs.
This product should be stored in a cool and ventilated place indoors, away from moisture, and the storage period is ten months.
